Digital panel meter cabinet DIN 48*24*90

Digital panel meter cabinet DIN 48*24*90
Digital panel meter cabinet DIN 48*24*90
Product Code : IC-024-04
Brand Name : GAURANG
Product Description

Detailed Product Description


Plastic ABS Case with cassette
Ventilation for effective heat dissipation
Customized holes/cutout possible
CE Marked, ISO'08

IC-024-04 -  Back Plate 8 Euro Plug-InTerminals Version

Case + Clamps + Front plate + Back plate 8 Std Plug-In type + screws


Detail features with all available accesories in IC-024 Casese (48*24*90) is as follows.



DIN Panel Case IC-024 is smallest case for Panel Flush mounting analog / Digital Instruments, Man-machine interface equipment and process indicators and controllers like Temp indicator, controller, Timers, Counters etc measuring indicating and control technology. Designed for easy installation, the case facilitates extremely rational equipment assembly with optimal utilization of space.


Features
  • Case size 48x24x90 mm
  • Dimensional size per DIN 43 700 - Panel flush mounting.
  • Panel Mounting -- Case inserted into the cutout of the control panel from front and fastening clamps are fixed from rear.
  • More Flexibility as it opens from front as well as back side.
  • Design to offer more inside space.
  • Snap-together design speeds up assembly.
  • Terminals : Option 1 Offers 16 Std 5/5.08 mm Pitch Plug-In Terminals
  • Terminal : Option 2 Offers 8 Std 5/5.08 mm Pitch Plug-In Terminals
  • Front plate in Red Transparent for display and also in Opaque Material
  • Front plate enables machining for creating opening for switches LED and other front plate components.
  • Ventilation -- Case has ventilation slots for effective heat dissipation.
  • Provision for Terminal connection, logo & other instructions Labels.
  • Snap-together design speeds up assembly.
  • Accommodates Three PCBs, Horizontal, Display and Terminal PCB which are interconnected with help of burg strip / directly soldered.
  • Easy assembly and disassembly for servicing
  • Customization : Cutout / holes in front plate possible

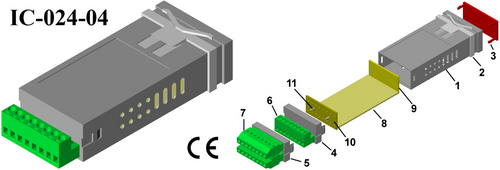

Case Parts

Case Parts

1. Case
2. Clamp
3. Front plate
4. Back plate - 8 Plug-In Terminals
5. Back plate - 16 Plug-In Terminals

6. 8 Plug-In Terminals
7. 16 Plug-In Terminals
8. Horizontal PCB
9. Display PCB
10. Back Terminal PCB
11. Screws

Material
Case : ABS
Front Opaque : ABS
Front Transparent : SAN
Back plates : ABS
Color
Gloss Black Matt Finish Spray painted Black & Dark Gray



Back Plate Terminal connection options
Back plate - 16 Std 5/5.08 mm
Pitch Plug-In Terminals
Back plate - 8 Std 5/5.08 mm
Pitch Plug-In Terminals
