Digital panel meter cabinet DIN 96*48*110

Digital panel meter cabinet DIN 96*48*110
Digital panel meter cabinet DIN 96*48*110
Product Code : IC-148-07
Brand Name : GAURANG
Product Description

Detailed Product Description

Plastic ABS Case with cassette
Many options in Front/Back plates
Customized holes/cutout possible
CE Marked, DIN Std, ISO-08

IC-148-07 - D type Casette
Front Plate with display cut out + Back Plate for Euro Terminal 5mm pitch Max 15 Term. + Screws


Detail features with all available accesories in IC-148 (96*48*110) is as follows.


DIN Panel Cases are suitable for Panel Flush mounting Analog - Digital Instruments / Man-machine interface equipment / process indicators and controllers like Temp indicator, controller, Timers, Counters etc Case is available with front loading cassette which offers space for mounting electronic inside and provides display facility in front and connectors at back. Cassette is versatile assembly of plastic Front and Back panel plate which are joined together by metal plates or PCBs. The plastic Front Plates are also available with few standard cut outs. Back plates are available in plain or with Terminal of solder able type or PCB insertion type.



  • Case size 96x48x 110 mm
  • Dimensional size per DIN 43 700 - Panel flush mounting.
  • Panel Mounting -- Case inserted into the cutout of the control panel from front and fastening clamps are fixed from rear.
  • Front loading cassette offers electronic mounting facility.
  • Cassette: versatile assembly of front plate, back plate, Metal plate and PCBs.
  • Front plate available in plain / with Std. cut out & display sheet.
  • Back plate in plain / with integral moulded terminals.
  • Terminals: 8 wire solder type / PCB insertion type.
  • Customization : Cutout / holes in front plate possible

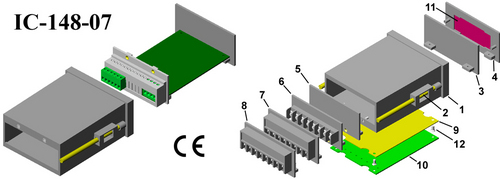

Case Parts

1.  Case

2.  Clamp
3.  Front plate plain
4.  Front plate Type 01
5.  Back plate plain

6.  Back plate with add on GT-1 Term.
7.  Back plate wire jumper C type Term.
8.  Back plate PCB insertion D type Term.
9.  Metal plate
10. Horizontal PCB
11. Red acrylic
12. Screws

Material :
Case : ABS
Front / Back plain plates : ABS
Back plates : Nylon

Color :
Gloss Black Matt Finish Spray painted Black & Dark Gray
