Din Rail Module Enclosure 110*74*22.5

Din Rail Module Enclosure 110*74*22.5
Din Rail Module Enclosure 110*74*22.5
Product Code : MD-22.5
Brand Name : GAURANG
Product Description

Detailed Product Description


Module Box with more Space - 110mm height
8 Term.
Top: White Base: Black
Customized holes/cutout possible
CE Marked, ISO-08

MD-22.5

 MODULBOX-DUALMOUNT - 22.5 - Din Rail Mounting / Wall mounting


Detail features with all available accesories in MD-22.5 Din Rail Enclosures is as follows.


Modulbox-Dualmount-22.5 - a versatile, compact enclosure is ideal for housing small devises like I/O circuits, relays, timers etc. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB.


Features
  • Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
  • Snap-together design speeds up assembly.
  • Two PCBs, Base PCB fixed on Base Plate, Vertical PCB for which cover has integral molded guides.
  • Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate.
  • Max. 8 Terminal (4+4) - standard 5mm pitch
  • Air ventilation - having slots for ventilation.
  • Protection - IP20 (finger protected) Protection against accidental contact
  • Terminals are optional - Enclosure supplied with / without terminals - customer can use standard commercial terminal available of their choice.

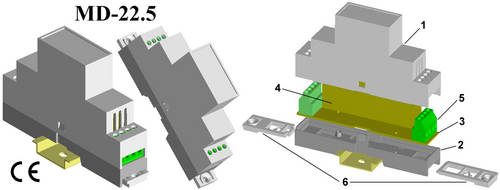

Enclosure Parts


Case Parts

1.  Case Top cover
2.  Base Plate
3.  Base PCB

4.  Vertical PCB
5.  Terminals
6.  Mounting Clips

Material :
Cover : ABS
Polycarbonate (FR -UL94V-0)
Base : ABS
Noryl (FR - UL94V-0)
Color :
Cover : White
Base: Black
