Din Rail Module Enclosure 112*88*145

Din Rail Module Enclosure 112*88*145
Din Rail Module Enclosure 112*88*145
Product Code : UEW-140
Brand Name : GAURANG
Product Description

Detailed Product Description


Universal mounting : DIN Rail 35mm,15mm,G type
Space for custom connectors
Light Grey
Customization possible
CE Marked, ISO

UEW - 140

 Enclosure with Space for custom connectors


Detail features with all available accesories in UEW-140 Din Rail Enclosures is as follows.


Universal Enclosure UEC / UE-140 - is distinguished by its modular design and universal mounting. It has Integral molded PCB guides for Base PCB and auxiliary Vertical & Horizontal PCBs. It also offers flexibility in I/O Terminal as fixed as well as euro terminals with customer specific configuration by knock out blanks terminal covers. Modular construction of enclosure provides ease in design and servicing of Instrument. It is ideal for housing Electrical, Electronics & Electromechanical medium size devises like I/O circuits, relays, timers, transducers, transmitters, Sensing and Motoring Devices.


Features
  • Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails.
  • Modular construction enables ease in design and servicing.
  • Enclosures inside: 70 x 140 x 60 mm.
  • PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
  • PCB guides: Integral molded guides in all directions.
  • Terminal Option: 52 Euro 5mm pitch OR 32 Fixed 3.75 mm pitch.
  • Knockout blanks for individual terminal configuration in covers of Euro Terminal version
  • Top cover available with countersunk screws as option.

The system:
Enclosure assembly consists of 35 mm Foot pieces, Spacer piece with End pieces and Top cover. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Enclosure has Integral molded PCB guides for Base PCB and auxiliary Vertical & Horizontal PCBs.

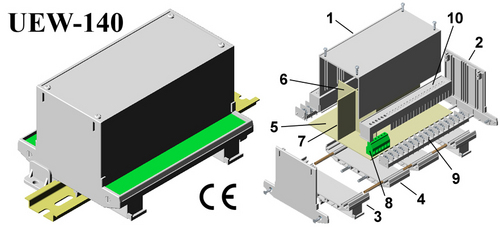

Enclosure Parts


Enclosure Parts

1.  Top cover
2.  End Piece
3.  Foot Piece
4.  Spacer Piece

5.  Base PCB
6.  Vertical PCB
7.  Horizontal PCB
8.  Euro Terminals
9.  Fixed Terminals
10. Terminal Covers

Material :
Cover : ABS
End Piece : Nylon
Foot Piece : Nylon 6.6
Spacer Piece: Nylon
Color :
Light Gray
