Din Rail Module Enclosure MD12T 110*74*22.5

Din Rail Module Enclosure MD12T 110*74*22.5
Din Rail Module Enclosure MD12T 110*74*22.5
Product Code : MD12T-22.5
Brand Name : GAURANG
Product Description

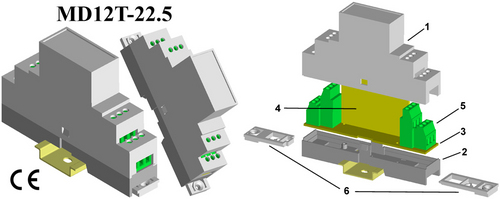

Detailed Product Description Module Box with more Space - 110mm height 12 Term. Top: White Base: Black Customized holes/cutout possible CE Marked, ISO-0 MD12T-22.5 MODULBOX-DUALMOUNT MD12T- 22.5 - Din Rail Mounting / Wall mounting Detail features with all available accesories in MD12T-22.5 Din Rail Enclosures is as follows. Modulbox-Dualmount12T-22.5 - a versatile, compact enclosure is ideal for housing small devises like I/O circuits, relays, timers etc. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB. Features Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB Snap-together design speeds up assembly. Two PCBs, Base PCB fixed on Base Plate, Vertical PCB for which cover has integral molded guides. Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate Max. 12 Terminal (3+3+3+3) – standard 5mm pitch Protection - IP20 (finger protected) Protection against accidental contact Terminals are optional – Enclosure supplied with / without terminals - customer can use standard commercial terminal available of their choice. Enclosure Parts Case Parts 1. Case Top cover 2. Base Plate 3. Base PCB 4. Vertical PCB 5. Terminals 6. Mounting Clips Material : Cover : ABS Polycarbonate (FR - UL94V-0) Base : ABS Noryl (FR - UL94V-0) Color : Cover : White Base: Black
