Din Rail Plastic Enclosure TriMount 103*88*44

Din Rail Plastic Enclosure TriMount 103*88*44
Din Rail Plastic Enclosure TriMount 103*88*44
Product Code : TPC-043-08
Brand Name : GAURANG
Product Description

Detailed Product Description


Din Rail Enclosure
16 Term. PCB Guides all sides
Top: White Base: Black
Customized holes/cutout possible
CE Marked, ISO'08

TPC-043-08

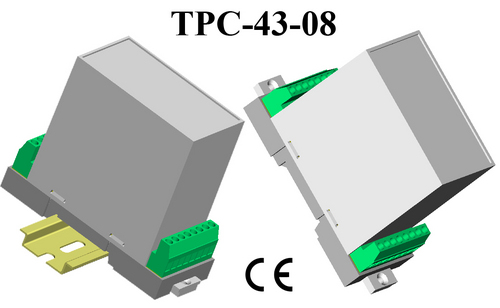

 TRI-MOUNT PLASTIC CASE - TPC-043-08 - Din Rail Mounting / Wall mounting


Detail features with all available accesories in TPC-043-08 Din Rail Enclosures is as follows.


Tri-Mount plastic modular case offers packaging to wide range of applications from automotive industry to home/building automation because of its unique three mounting feature of 8 pin / 11 pin, DIN Rail and Wall mounting. Typical applications are Relays, Timers, Transducers, Transmitters, Thermostat, Sensing and Monitoring Devices.






8/11 Pin Socket MountRail Mount




Wall Mount

Tri-Mount Case having cover dimension 43 x 78 x 76 mm is designed to have snapped together verity of base plate that offers different types of mounting to the case. Case cover has PCB Guides for two vertical PCBs. Cover top can accommodate with spacer a horizontal pcb ideal for holding signaling devices / indicators and switches. One type of Base plate offers 8 pin / 11 pin socket mounting facility and other type of Base plate is designed to offer Rail / Wall mounting facility. Innovative designed pair of clips can be snapped in the holes of the Base plate at two different position. Clips snapped in to outer hole position of base plate offers Wall mounting facility and by just changing it to inner hole position it facilitate case a rail mounting option. Case is designed for customer specific solution in Termination for rail/ wall mounting application. Case Base PCB has space on both sides for terminals. Customer can use our standard lug size terminal or can use standard commercial terminals of phoenix, weidmuller, Wago, Molex and other suppliers.

Tri-Mount Case Part


TERMINAL OPTION
Tri-Mount Case is designed for customer specific solution in Termination. Case Base PCB has space on both sides for terminals. Customer can use our Open or shrouded Terminal fix type. Alternatively, can use standard commercial terminals of phoenix, weidmuller, Wago, Molex and other suppliers.


Std. Shrouded Terminal Block fixed type.
Max 10 (5 x 2).
5 / 5.08 mm pitch Terminal
Max. 16 ( 8 x 2 )
5 / 5.08 mm pitch Plug-In Terminal:
Max. 16 ( 8 x 2 )
7.5 mm pitch for higher amp. Max. 8 (4 x 2 )

Material :
Cover : ABS Polycarbonate (FR - UL94V-0)
Base : ABS Noryl (FR - UL94V-0)
Color :
Cover : White
Base: Black
