DIN Rail Plastic PCB board holders 73mm
Detailed Product Description
DIN Rail PCB board holders
1Mt/2Mt Profile Length
Custom cut to your PCB size available
Color Green / Black
CE Marked, ISO

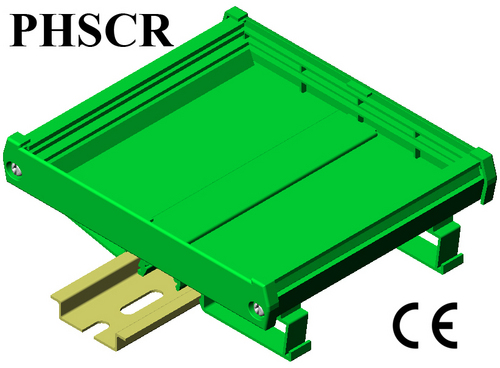

Profile Holder for 73mm width PCB - DIN Rail Mounting
Detail features with all available accesories in PHSCR is as follows.
DIN Rail or Panel Mount Universal mounting for 73 & 108 mm width PCB
Profile PCB Holders provides quick & easy mounting of PCBs on all three rails (35, 15, G) & Wall / Panel. Profiles are available in standard 1 or 2 Meter length or it can be easily cut to required custom lengths. Profiles are also available with custom length from us with accurate cutting. The typical applications of Profile PCB Holders include Mounting custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital Converter etc.
- Universal mounting in all three commercially available rails EN 60 715 TH35, TH15 and G32 DIN rails.
- Panel / wall Mounting
- For 73mm and 108mm width PCB size.
- Available with custom length & in preassembled kit form to save time
DIN Rail Mounting: The Profile is mounted on DIN rail with help of 2 or more Foot Piece; It slides into grooves on the extrusion. Two End Pieces are fixed with screws on extrusion to hold PCB securely in place and to keep out foreign objects.
Panel Mounting: To panel mount, Two Panel Mont End Pieces which has an integral mounting flange with a 5.5x 7.5mm hole slot. There is no need of Foot Pieces in Panel mounting.
Note: Save time by ordering Kit with our preassembled Profile Holders, made from profile extensions cut to size and two End Sections. They can be ordered for DIN rail or panel mounting for custom length.
