Modular PCB Holders

Modular PCB Holders
Modular PCB Holders
Product Code : 21
Brand Name : GAURANG
Product Description
Modular PCB Holders

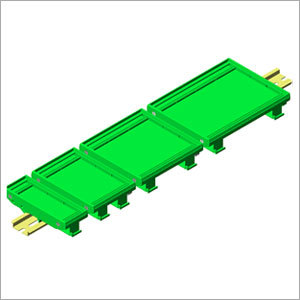

Modular PCB Holders DIN Rail or Panel Mount Universal mounting for 73 & 108 mm width PCB  Modular PCB Holders provides quick & easy mounting of PCBs on all three Rails. Modular design concept allows variable length of PCBs. Active & passive Interface modules used in Electrical circuits with Electronic system as one of its use.

The typical applications of Profile PCB Holders include Mountin  custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital Converter etc.

Features
  • Universal mounting in all three commercially available rails EN 60 715 TH35, TH15 and G32 DIN rails.
  • Available in standard size modules
  • Provides quick & easy mounting of PCBs as no cutting or other operation is needed.
  • Panel / wall Mounting
  • For 72mm and 108mm width PCB size.
The system: 108 mm width PCB Holders assembly consists of 35 mm Foot pieces, Spacer piece with End pieces. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting separate High and Low Brackets available as accessories which fits on End pieces to provide Panel / Surface mounting.

The system: 72 mm width PCB Holders assembly consists of 45mm Base element, two side elements and Foot element. Foot Element provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting side element has an integral mounting flange with slot. There is no need of Foot element in Panel mounting.

Modular PCB Holders Parts

108mm width Modular PCB Holders
  • Foot Piece
  • Spacer Piece
  • End Piece
  • Pins
  • High Bracket
  • Low Bracket
  • Material: End Piece : Nylon6.6 Foot Piece : Nylon 6.6 Spacer Piece : Nylon 6.6
  • Color: Green , Light Gray
72mm width Modular PCB Holders
  • Base Element
  • Foot Element
  • Side element
  • Material: Base Element : Nylon 6.6 Foot Element : Nylon 6.6 Side Element : Nylon 6.6
  • Color: Green
Panel / Surface Mounting Ordering Information
  • UH - Modular PCB Holders - 108mm width
  • UH-035 Base PCB Size 108 x 37.5 mm
  • UH-175 Base PCB Size 108 x 179.5 mm
  • UH-070  Base PCB Size 108 x 73 mm
  • UH-210  Base PCB Size 108 x 215 mm
  • UH-105  Base PCB Size 108 x 108.5 mm
  • UH-245  Base PCB Size 108 x 250.5 mm
  • UH-140  Base PCB Size 108 x 144 mm
  • UH-280  Base PCB Size 108 x 286 mm
ACCESSORIES ( Loose Parts )
  • UBRH  High Bracket for Wall / Surface mounting.
  • UBRL  Low Bracket for Wall / Surface mounting
UHS - Modula PCB Holders -- 72mm width
  • UHS-020  Base PCB Size 72 x 20 mm
  • UHS-155  Base PCB Size 72 x 153.5 mm
  • UHS-065  Base PCB Size 72 x 64.5 mm
  • UHS-200  Base PCB Size 72 x 198 mm
  • UHS-110 Base PCB Size 72 x 109 mm
  • UHS-245  Base PCB Size 72 x 242.5 mm
