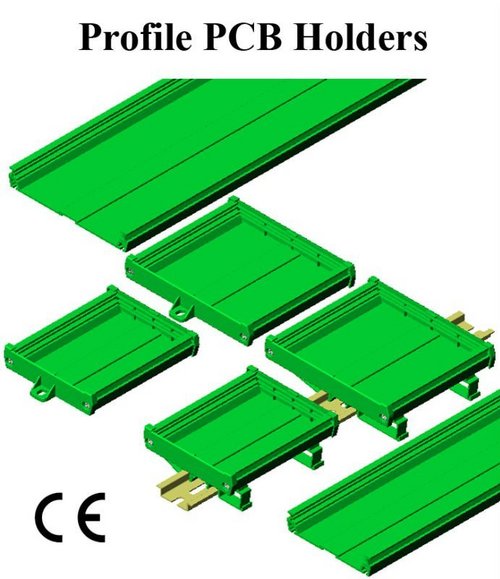

Pcb Board Holder

Pcb Board Holder
Pcb Board Holder
Product Code : 20
Brand Name : GAURANG
Product Description

With our in-depth knowledge in the respective domain, we are engaged in offering optimum quality Pcb Board Holder. The provided holder is manufactured with the help of latest technology at our advanced production unit. Offered holder is tremendously used in electronic devices as a storage medium. Stringently tested on certain quality parameters, this Pcb Board Holder can be easily availed from us at market leading prices.

Features:

  • Excellent finish

  • Easy to fix

  • Latest design

  • Less maintenance

Other Specifications:

Profile PCB Holders provides quick & easy mounting of PCBs on all three rails (35, 15, G) & Wall / Panel. Profiles are available in standard 1 or 2 Meter length or it can be easily cut to required custom lengths. Profiles are also available with custom length from us with accurate cutting.

The typical applications of Profile PCB Holders include Mounting custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital Converter etc.

Features

  • Universal mounting in all three commercially available rails EN 60 715 TH35, TH15 and G32 DIN rails.

  • Panel / wall Mounting

  • For 73mm and 108mm width PCB size.

  • Available with custom length & in preassembled kit form to save time

Mounting of Profile PCB Holders

  • DIN Rail Mounting: The Profile is mounted on DIN rail with help of 2 or more Foot Piece; It slides into grooves on the extrusion. Two End Pieces are fixed with screws on extrusion to hold PCB securely in place and to keep out foreign objects.

  • Panel Mounting: To panel mount, Two Panel Mont End Pieces which has an integral mounting flange with a 5.5x 7.5mm hole slot. There is no need of Foot Pieces in Panel mounting.

Ordering Information

PHS - Profile PCB Holders - 73mm width

  • PHSCR-xxx.x - Rail Mount complete set ( Set consist of profile PHSE-xxx.x + 2 Nos. Foot Pieces PHSF + 2 Nos. End Piece Rail mount PHSR)

  • PHSCP-xxx.x- Panel Mount complete set ( Set consist of profile PHSE-xxx.x + 2 Nos. End Piece Panel mount PHSP)

PH - Profile PCB Holders - 108mm width

  • PHCR-xxx.x - Rail Mount complete set ( Set consist of profile PHE-xxx.x + 2 Nos. Foot Pieces PHF + 2 Nos. End Piece Rail mount PHR)

  • PHCP-xxx.x - Panel Mount complete set ( Set consist of profile PHE-xxx.x + 2 Nos. End Piece Panel mount PHP)

Accessories ( Loose Parts )

PHSE-xxx.x Profile extrusion molded Custom Length ( xxx.x = length of profile in mm, i.e. xxx.x = 152.5 mm)

  • PHSE-1000 Profile extrusion molded only 1 meter Length

  • PHSE-2000 Profile extrusion molded only 2 meter Length

  • PHSF Foot Piece for rail mounting

  •  PHSR End Piece for rail mounting

  • PHSP End Piece for Panel Mounting

PHE-xxx.x Profile extrusion molded Custom Length ( xxx.x = length of profile in mm, i.e. xxx.x = 152.5 mm)

  • PHE-1000 - Profile extrusion molded only 1 meter Length

  • PHE-2000 Profile extrusion molded only 2 meter Length

  • PHF Foot Piece for rail mounting

  • PHR End Piece for rail mounting

  • PHP End Piece for Panel Mounting
