Plugs & Sockets

Plugs & Sockets
Plugs & Sockets
Product Code : 24
Brand Name : GAURANG
Product Description

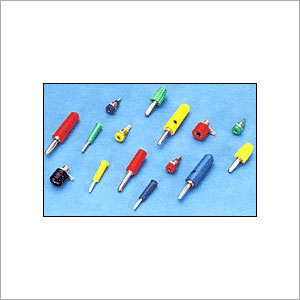

Plugs and sockets are having Brass Parts Bright Nickel plated and insulated by thermoplastic material.

GP2 - 2mmGPB - 4mmGP8 - 4mmGP7 - 4mm


SOCKETS

GS2 - 2mmGS5 - 4mm


General Specifications for Plugs and Sockets

 Plugs and Sockets
4mm.2 mm.
Current Rating10 Amps7 Amps
Insulation Resistance at 500 DC100 Mohms min100 Mohms min
Breakdown Voltage500 Vac 1 min.1000 Vac 1 min
Contact Resistance5 Mohms. max5 Mohms. max.
