Terminals

Terminals
Terminals
Product Code : 25
Brand Name : GAURANG
Product Description

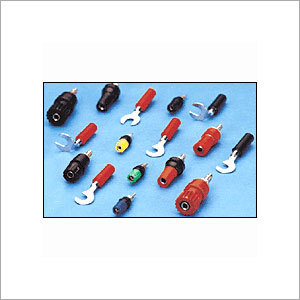

Terminals

Spade Terminals
Spade Terminal has straight or side slot for connection to spindle of Terminal. It also has solderable lead. Insulating Handle is molded in Thermoplastic material available in Red & Black.

Binding Post Terminals
Binding Post Terminals have heads with 4mm socket. (Except GT -3 which has 2mm socket hole). Cross holes are provided in the spindles for cable connection. Panel fitting is achieved by insulating bushes, two lock nuts and plain washer. All Brass parts are Bright Nickel plated.

Specification

Parameter

ST - 1
ST - 2

STH - 1

GT - 3

GTO - 5
GTOL - 5

GT - 10

GT - 15

GT - 30

Current Rating

10A

15A

3A

5A

10A

15A

30A

Contact Resistance

5
Mohms
Max

5
Mohms
Max

10
Mohms
Max

5
Mohms
Max

5
Mohms
Max

5
Mohms
Max

5
Mohms
Max

Flash over Voltage

1.2
K. V.
min.

1.2
K. V.
min.

1
K. V.
min.

1.2
K. V.
min.

1.2
K. V.
min.

2
K. V.
min.

2
K. V.
min.

Insulation Resistance

1000
Mohms
Max

1000
Mohms
Max

1000
Mohms
Max

1000
Mohms
Max

1000
Mohms
Max

1000
Mohms
Max

1000
Mohms
Max

Max. Working Temp.

70o C

70o C

70o C

70o C

70o C

100o C

100o C
