Wall Mount Plastic Enclosure 112*78*75
Detailed Product Description
Wall / Panel mounting
Space for custom connectors
Light Grey, PCB Guides in all sides
CE Marked, ISO
UEWP - 070
Enclosure with Space for custom connectors & Wall / Surface mounting
Detail features with all available accesories in UEWP-070 Din Rail Enclosures is as follows.
Universal Enclosure UEC / UE-070 - is distinguished by its modular design and universal mounting. It has Integral molded PCB guides for Base PCB and auxiliary Vertical & Horizontal PCBs. It also offers flexibility in I/O Terminal as fixed as well as euro terminals with customer specific configuration by knock out blanks terminal covers. Modular construction of enclosure provides ease in design and servicing of Instrument. It is ideal for housing Electrical, Electronics & Electromechanical small devises like I/O circuits, relays, timers, transducers, transmitters, Sensing and Motoring Devices.
- Universal mounting in all three commercially available rails. EN 60 715 TH35, TH15 and G32 DIN rails.
- Modular construction enables ease in design and servicing.
- Enclosures inside: 70 x 70 x 60 mm.
- PCBs: Base PCB and auxiliary Vertical & Horizontal PCBs
- PCB guides: Integral molded guides in all directions.
- Terminal Option: 24 Euro 5mm pitch OR 16 Fixed 3.75 mm pitch.
- Knockout blanks for individual terminal configuration in covers of Euro Terminal version
- Top cover available with countersunk screws as option.

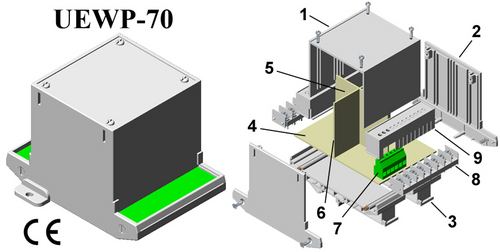

Enclosure assembly consists of 35 mm Foot pieces with End pieces and Top cover. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Enclosure has Integral molded PCB guides for Base PCB and auxiliary Vertical & Horizontal PCBs.
