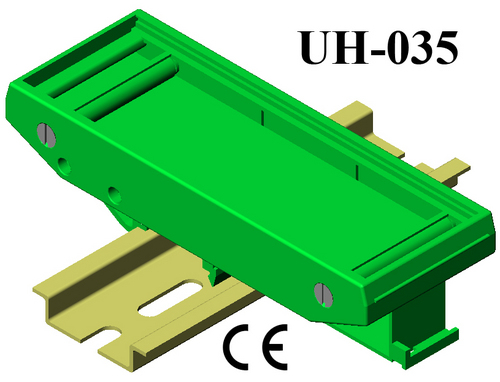

Detailed Product DescriptionUniversal mounting : DIN Rail 35mm,15mm,G type Modular design, For PCB size 108*37.5 Color Green, Gray CE Marked, ISO2008
Modular PCB Holder for 108*37.5mm PCB - DIN Rail Mounting / Wall Mountiong
Detail features with all available accesories in UH-035 is as follows.
Modular PCB Holders DIN Rail or Panel Mount Universal mounting for 73 & 108 mm width PCB
Modular PCB Holders provides quick & easy mounting of PCBs on all three Rails. Modular design concept allows variable length of PCBs. Active & passive Interface modules used in Electrical circuits with Electronic system as one of its use. The typical applications of Profile PCB Holders include Mounting custom PCB and Standard interface modules for Din Connectors, Sub Miniature Din Connectors, Flat Cable Connectors also Modules like Relay modules, Opto - coupler modules, Switch modules, Fuse modules, Diode modules, Veristor Modules, Power supply modules, Over Voltage protection modules, Data Transmission & Receiver Modules, Analog/ Digital Converter etc.
- Universal mounting in all three commercially available rails EN 60 715 TH35, TH15 and G32 DIN rails.
- Available in standard size modules
- Provides quick & easy mounting of PCBs as no cutting or other operation is needed.
- Panel / wall Mounting
- For 72mm and 108mm width PCB size.
The system: 108 mm width PCB Holders assembly consists of 35 mm Foot pieces, Spacer piece with End pieces. Foot piece provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting separate High and Low Brackets available as accessories which fits on End pieces to provide Panel / Surface mounting.
The system: 72 mm width PCB Holders assembly consists of 45mm Base element, two side elements and Foot element. Foot Element provides fixing for complete assembly by simple snap fitting on all three rails. Holders have Integral molded PCB guides for Base PCB. For Panel / wall mounting side element has an integral mounting flange with slot. There is no need of Foot element in Panel mounting.
