Din Rail PLC Module Enclosure 110*74*157

Din Rail PLC Module Enclosure 110*74*157
Din Rail PLC Module Enclosure 110*74*157
Send Inquiry
Product Code : MD-157
Brand Name : GAURANG
Product Description

Detailed Product Description

Module Box with more Space - 110mm height
24 Term.
Top: White Base: Black
Customized holes/cutout possible
CE Marked, ISO08


 MODULBOX-DUALMOUNT MD-157 - Din Rail Mounting / Wall mounting

Detail features with all available accesories in MD-157 Din Rail Enclosures is as follows.

Modulbox-Dualmount-157 - a versatile, compact enclosure is ideal for housing medium to large size control devises. Modulbox offers wide designing option with three ways in PCB mounting and with customer specific solution in termination / connectors. Enclosure is having wall as well as DIN rail mounting facility. It is designed as per DIN 43880 has cover face of 45mm high enables it to mount within large international style enclosures / distribution system with 45 mm cutouts like MCB. Modular enclosure offers packaging to wide range of applications from Instrumentation, automotive industry to home/building automation. Typical applications are PLC, Multiple Relays, Multiple Timers, Transducers, Transmitters, Thermostat, Sensing and Monitoring Devices.

  • Dimensional size per DIN 43 880 - Can be mounted with Distribution system along with MCB
  • Knockout blanks for individual terminal configuration
  • Snap-together design speeds up assembly.
  • Three PCBs provision - Base PCB fixed on Base Plate, Vertical and Horizontal PCBs for which cover has integral molded guides.
  • Innovative Clips design facilitates Wall / Rail Mount to Enclosures by changing its position in Base plate.
  • Max. 56 Terminal (28+28) – standard 5mm pitch fixed OR Plug-In type.
  • Closed cover available for front side mating connectors like  D-sub OR for any other option
  • Air ventilation – having slots for ventilation.
  •  Protection - IP20 (finger protected) Protection against accidental contact
  • Terminals are optional – Enclosure supplied with / without terminals - customer can use standard commercial terminal available of their choice.
Knock Out Blanks for Individual Terminal Configuration
Enclosure Top Cover is a closed cover with Knock out blanks. The openings for Terminals on top and side are achieved by knocking out blanks as per terminal configuration. This feature gives enclosure tailored made enclosure look and allows use of terminals only as per requirement without any wastage thereby saving in terminal cost

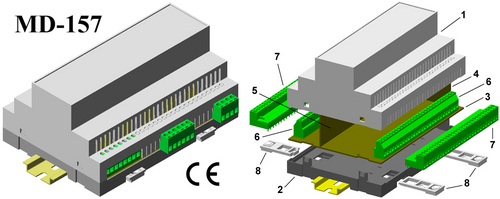

Enclosure Parts

Case Parts

1.  Case Top cover
2.  Base Plate
3.  Base PCB
4.  Vertical PCB

5.  Horizontal PCB
6.  Fixed Terminals
7.  Plug-In Terminals
8.  Mounting Clips

Material :
Cover : ABS
Polycarbonate (FR -UL94V-0)
Base : ABS
Noryl (FR - UL94V-0)

Color :
Cover : White
